LowLevelMidiDriver Class Reference

#include <LowLevelMidiDriver.h>

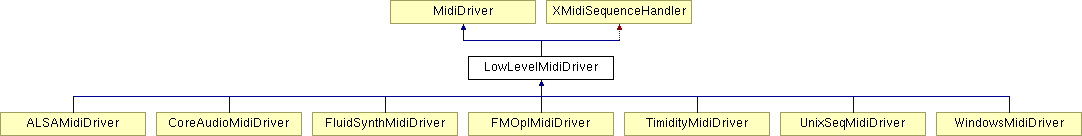

Inheritance diagram for LowLevelMidiDriver:


Public Member Functions
	LowLevelMidiDriver ()
virtual	~LowLevelMidiDriver ()
virtual int	initMidiDriver (uint32 sample_rate, bool stereo)
virtual void	destroyMidiDriver ()
virtual int	maxSequences ()
virtual void	setGlobalVolume (int vol)
virtual void	startSequence (int seq_num, XMidiEventList *list, bool repeat, int vol, int branch=-1)
virtual void	finishSequence (int seq_num)
virtual void	pauseSequence (int seq_num)
virtual void	unpauseSequence (int seq_num)
virtual void	setSequenceVolume (int seq_num, int vol)
virtual void	setSequenceSpeed (int seq_num, int speed)
virtual bool	isSequencePlaying (int seq_num)
virtual uint32	getSequenceCallbackData (int seq_num)
virtual void	produceSamples (sint16 *samples, uint32 bytes)
virtual void	loadTimbreLibrary (IDataSource *, TimbreLibraryType type)
Protected Member Functions
virtual int	open ()=0
virtual void	close ()=0
virtual void	send (uint32 message)=0
virtual void	send_sysex (uint8 status, const uint8 *msg, uint16 length)
virtual void	increaseThreadPriority ()
virtual void	lowLevelProduceSamples (sint16 *samples, uint32 num_samples)
virtual void	yield ()
Protected Attributes
uint32	sample_rate
bool	stereo
Private Member Functions
sint32	peekComMessageType ()
void	sendComMessage (ComMessage &message)
void	waitTillNoComMessages ()
void	lockComMessage ()
void	unlockComMessage ()
void	loadXMidiTimbreLibrary (IDataSource *ds)
void	extractTimbreLibrary (XMidiEventList *eventlist)
void	uploadTimbre (int bank, int timbre)
void	setPatchBank (int bank, int patch)
void	loadRhythmTemp (int temp)
void	sendMT32SystemMessage (uint32 address_base, uint16 address_offset, uint32 len, const void *data)
bool	playSequences ()
int	initThreadedSynth ()
void	destroyThreadedSynth ()
int	threadMain ()
int	initSoftwareSynth ()
void	destroySoftwareSynth ()
virtual void	sequenceSendEvent (uint16 sequence_id, uint32 message)
virtual void	sequenceSendSysEx (uint16 sequence_id, uint8 status, const uint8 *msg, uint16 length)
virtual uint32	getTickCount (uint16 sequence_id)
virtual void	handleCallbackTrigger (uint16 sequence_id, uint8 data)
int	protectChannel (uint16 sequence_id, int chan, bool protect)
int	lockChannel (uint16 sequence_id, int chan, bool lock)
int	unlockAndUnprotectChannel (uint16 sequence_id)
void	muteAllChannels ()
Static Private Member Functions
static int	threadMain_Static (void *data)
Private Attributes
bool	uploading_timbres
std::queue< ComMessage >	messages
SDL_mutex *	mutex
SDL_mutex *	cbmutex
SDL_cond *	cond
bool	playing [LLMD_NUM_SEQ]
sint32	callback_data [LLMD_NUM_SEQ]
int	global_volume
uint32	xmidi_clock
int	chan_locks [16]
int	chan_map [LLMD_NUM_SEQ][16]
XMidiSequence *	sequences [LLMD_NUM_SEQ]
int	next_sysex
uint32	total_seconds
uint32	samples_this_second
uint32	samples_per_iteration
SDL_Thread *	thread
MT32Patch **	mt32_patch_banks [128]
MT32Timbre **	mt32_timbre_banks [128]
MT32Rhythm *	mt32_rhythm_bank [128]
int	mt32_timbre_used [64][2]
int	mt32_bank_sel [LLMD_NUM_SEQ][16]
int	mt32_patch_bank_sel [128]
Static Private Attributes
static const MT32Patch	mt32_patch_template
Classes
struct	ComMessage
struct	MT32Patch
struct	MT32Rhythm
struct	MT32Timbre

Detailed Description

An Abstract implementation of MidiDriver for Simple Low Level support of Midi playback

Note:: An implementation of LowLevelMidiDriver needs to implement the open(), close() and send() functions. Implementing increaseThreadPriority() is optional, however it is strongly recommended that it is implemented. If it's not implemented, the main Pentagram thread MAY use too much CPU time and cause timing problems. Similar, implemeting yield() is a good idea too.

Definition at line 43 of file LowLevelMidiDriver.h.

Constructor & Destructor Documentation

LowLevelMidiDriver::LowLevelMidiDriver ( )

Definition at line 141 of file LowLevelMidiDriver.cpp.

LowLevelMidiDriver::~LowLevelMidiDriver ( ) [virtual]

Definition at line 147 of file LowLevelMidiDriver.cpp.

References MidiDriver::initialized, perr, and thread.

Member Function Documentation

virtual void LowLevelMidiDriver::close ( ) [protected, pure virtual]

Close the Midi Device.

Implemented in ALSAMidiDriver, CoreAudioMidiDriver, FluidSynthMidiDriver, FMOplMidiDriver, TimidityMidiDriver, UnixSeqMidiDriver, and WindowsMidiDriver.

Referenced by destroySoftwareSynth(), and threadMain().

void LowLevelMidiDriver::destroyMidiDriver ( ) [virtual]

Destroy the driver.

Implements MidiDriver.

Definition at line 218 of file LowLevelMidiDriver.cpp.

References cbmutex, cond, destroySoftwareSynth(), destroyThreadedSynth(), MidiDriver::initialized, MidiDriver::isSampleProducer(), mutex, thread, and waitTillNoComMessages().

Referenced by initMidiDriver().

void LowLevelMidiDriver::destroySoftwareSynth ( ) [private]

Definition at line 634 of file LowLevelMidiDriver.cpp.

References close(), sendComMessage(), and waitTillNoComMessages().

Referenced by destroyMidiDriver().

void LowLevelMidiDriver::destroyThreadedSynth ( ) [private]

Definition at line 451 of file LowLevelMidiDriver.cpp.

References lockComMessage(), messages, peekComMessageType(), perr, sendComMessage(), thread, unlockComMessage(), and yield().

Referenced by destroyMidiDriver().

void LowLevelMidiDriver::extractTimbreLibrary ( XMidiEventList * eventlist ) [private]

void LowLevelMidiDriver::finishSequence ( int seq_num ) [virtual]

Finish playing a sequence, and free the data

Parameters:

seq_num

The Sequence number to stop

Implements MidiDriver.

Definition at line 279 of file LowLevelMidiDriver.cpp.

References MidiDriver::initialized, sendComMessage(), LowLevelMidiDriver::ComMessage::sequence, and uploading_timbres.

uint32 LowLevelMidiDriver::getSequenceCallbackData ( int seq_num ) [virtual]

Get the callback data for a specified sequence

Parameters:

seq_num

The Sequence to get callback data from

Reimplemented from MidiDriver.

Definition at line 371 of file LowLevelMidiDriver.cpp.

References callback_data, and cbmutex.

uint32 LowLevelMidiDriver::getTickCount ( uint16 sequence_id ) [private, virtual]

An event sent from a sequence to play

Parameters:

sequence_id

The id of the sequence requesting the tick count

Returns:: Number of ticks, in 6000ths of a second

Implements XMidiSequenceHandler.

Definition at line 996 of file LowLevelMidiDriver.cpp.

References xmidi_clock.

void LowLevelMidiDriver::handleCallbackTrigger	(	uint16	sequence_id,
		uint8	data
	)			`[private, virtual]`

Handle an XMIDI Callback Trigger Event

Parameters:

	sequence_id	The id of the sequence doing the callback
	data	data[1] of the XMIDI_CONTROLLER_CALLBACK_TRIG event

Implements XMidiSequenceHandler.

Definition at line 1001 of file LowLevelMidiDriver.cpp.

References callback_data, and cbmutex.

virtual void LowLevelMidiDriver::increaseThreadPriority ( ) [inline, protected, virtual]

Increate the Thread Priority of the Play (current) thread.

Reimplemented in CoreAudioMidiDriver, and WindowsMidiDriver.

Definition at line 95 of file LowLevelMidiDriver.h.

Referenced by threadMain().

int LowLevelMidiDriver::initMidiDriver	(	uint32	sample_rate,
		bool	stereo
	)			`[virtual]`

Initialize the driver

Parameters:

	sample_rate	The sample rate for software synths
	stereo	Specifies if a software synth must produce stero sound

Returns:: Non zero on failure

Implements MidiDriver.

Definition at line 163 of file LowLevelMidiDriver.cpp.

References callback_data, cbmutex, chan_locks, chan_map, cond, destroyMidiDriver(), MidiDriver::initialized, initSoftwareSynth(), initThreadedSynth(), MidiDriver::isSampleProducer(), mt32_bank_sel, mt32_patch_bank_sel, mt32_patch_banks, mt32_rhythm_bank, mt32_timbre_banks, mt32_timbre_used, mutex, next_sysex, perr, playing, sample_rate, sequences, stereo, thread, and uploading_timbres.

int LowLevelMidiDriver::initSoftwareSynth ( ) [private]

Definition at line 600 of file LowLevelMidiDriver.cpp.

References open(), sample_rate, samples_per_iteration, samples_this_second, and total_seconds.

Referenced by initMidiDriver().

int LowLevelMidiDriver::initThreadedSynth ( ) [private]

Definition at line 422 of file LowLevelMidiDriver.cpp.

References lockComMessage(), messages, peekComMessageType(), sendComMessage(), thread, threadMain_Static(), unlockComMessage(), and yield().

Referenced by initMidiDriver().

bool LowLevelMidiDriver::isSequencePlaying ( int seq_num ) [virtual]

Check to see if a sequence is playing (doesn't check for pause state)

Parameters:

seq_num

The Sequence number to check

Returns:: true is sequence is playing, false if not playing

Implements MidiDriver.

Definition at line 331 of file LowLevelMidiDriver.cpp.

References lockComMessage(), playing, unlockComMessage(), uploading_timbres, and waitTillNoComMessages().

void LowLevelMidiDriver::loadRhythmTemp ( int temp ) [private]

Definition at line 1520 of file LowLevelMidiDriver.cpp.

References LowLevelMidiDriver::MT32Timbre::index, PentZip::int(), mt32_rhythm_bank, mt32_timbre_banks, perr, pout, LowLevelMidiDriver::MT32Timbre::protect, rhythm_base, rhythm_mem_offset(), rhythm_mem_size, sendMT32SystemMessage(), LowLevelMidiDriver::MT32Rhythm::timbre, and uploadTimbre().

Referenced by sequenceSendEvent().

void LowLevelMidiDriver::loadTimbreLibrary	(	IDataSource *	,
		TimbreLibraryType	type
	)			`[virtual]`

void LowLevelMidiDriver::loadXMidiTimbreLibrary ( IDataSource * ds ) [private]

Definition at line 1621 of file LowLevelMidiDriver.cpp.

References IDataSource::getPos(), IDataSource::getSize(), LowLevelMidiDriver::MT32Timbre::index, mt32_patch_banks, mt32_patch_template, mt32_timbre_banks, pout, LowLevelMidiDriver::MT32Timbre::protect, IDataSource::read(), IDataSource::read1(), IDataSource::read2(), IDataSource::read4(), IDataSource::seek(), LowLevelMidiDriver::MT32Patch::timbre_bank, LowLevelMidiDriver::MT32Patch::timbre_num, and LowLevelMidiDriver::MT32Timbre::time_uploaded.

Referenced by loadTimbreLibrary().

int LowLevelMidiDriver::lockChannel	(	uint16	sequence_id,
		int	chan,
		bool	lock
	)			`[private]`

Definition at line 1052 of file LowLevelMidiDriver.cpp.

References chan_locks, chan_map, XMidiSequence::gainChannel(), XMidiSequence::loseChannel(), and sequences.

Referenced by protectChannel(), sequenceSendEvent(), and unlockAndUnprotectChannel().

void LowLevelMidiDriver::lockComMessage ( ) [private]

Definition at line 408 of file LowLevelMidiDriver.cpp.

References mutex.

Referenced by destroyThreadedSynth(), initThreadedSynth(), isSequencePlaying(), loadTimbreLibrary(), peekComMessageType(), playSequences(), produceSamples(), sendComMessage(), startSequence(), and threadMain().

virtual void LowLevelMidiDriver::lowLevelProduceSamples	(	sint16 *	samples,
		uint32	num_samples
	)			`[inline, protected, virtual]`

Allows LowLevelMidiDrivers to produce samples.

Reimplemented in FluidSynthMidiDriver, FMOplMidiDriver, and TimidityMidiDriver.

Definition at line 98 of file LowLevelMidiDriver.h.

Referenced by produceSamples().

int LowLevelMidiDriver::maxSequences ( ) [virtual]

Get the maximum number of playing sequences supported by this this driver

Returns:: The maximum number of playing sequences

Implements MidiDriver.

Definition at line 240 of file LowLevelMidiDriver.cpp.

void LowLevelMidiDriver::muteAllChannels ( ) [private]

Mute all phyisical channels.

virtual int LowLevelMidiDriver::open ( ) [protected, pure virtual]

Open the Midi Device

Returns:: 0 on sucess. Non zero on failure.

Implemented in ALSAMidiDriver, CoreAudioMidiDriver, FluidSynthMidiDriver, FMOplMidiDriver, TimidityMidiDriver, UnixSeqMidiDriver, and WindowsMidiDriver.

Referenced by initSoftwareSynth(), and threadMain().

void LowLevelMidiDriver::pauseSequence ( int seq_num ) [virtual]

Pause the playback of a sequence

Parameters:

seq_num

The Sequence number to pause

Implements MidiDriver.

Definition at line 345 of file LowLevelMidiDriver.cpp.

References LowLevelMidiDriver::ComMessage::data, MidiDriver::initialized, LowLevelMidiDriver::ComMessage::pause, sendComMessage(), LowLevelMidiDriver::ComMessage::sequence, and uploading_timbres.

sint32 LowLevelMidiDriver::peekComMessageType ( ) [private]

Definition at line 386 of file LowLevelMidiDriver.cpp.

References lockComMessage(), messages, and unlockComMessage().

Referenced by destroyThreadedSynth(), initThreadedSynth(), playSequences(), and waitTillNoComMessages().

bool LowLevelMidiDriver::playSequences ( ) [private]

Play all sequences, handle communications requests /return true if terminating

Definition at line 700 of file LowLevelMidiDriver.cpp.

References callback_data, XMidiSequence::getChanMask(), global_volume, lockComMessage(), messages, mt32_patch_banks, mt32_timbre_banks, XMidiSequence::pause(), peekComMessageType(), playing, sequences, setPatchBank(), XMidiSequence::setSpeed(), XMidiSequence::setVolume(), unlockAndUnprotectChannel(), unlockComMessage(), XMidiSequence::unpause(), and uploadTimbre().

Referenced by produceSamples(), and threadMain().

void LowLevelMidiDriver::produceSamples	(	sint16 *	samples,
		uint32	bytes
	)			`[virtual]`

Produce Samples when doing Software Synthesizing

Parameters:

	samples	The buffer to fill with samples
	bytes	The number of bytes of music to produce

Reimplemented from MidiDriver.

Definition at line 646 of file LowLevelMidiDriver.cpp.

References MidiDriver::initialized, lockComMessage(), lowLevelProduceSamples(), messages, playSequences(), sample_rate, samples_per_iteration, samples_this_second, stereo, total_seconds, unlockComMessage(), and xmidi_clock.

int LowLevelMidiDriver::protectChannel	(	uint16	sequence_id,
		int	chan,
		bool	protect
	)			`[private]`

Definition at line 1008 of file LowLevelMidiDriver.cpp.

References chan_locks, chan_map, and lockChannel().

Referenced by sequenceSendEvent(), and unlockAndUnprotectChannel().

virtual void LowLevelMidiDriver::send ( uint32 message ) [protected, pure virtual]

Send a message to the Midi Device.

Implemented in ALSAMidiDriver, CoreAudioMidiDriver, FluidSynthMidiDriver, FMOplMidiDriver, TimidityMidiDriver, UnixSeqMidiDriver, and WindowsMidiDriver.

Referenced by sequenceSendEvent().

virtual void LowLevelMidiDriver::send_sysex	(	uint8	status,
		const uint8 *	msg,
		uint16	length
	)			`[inline, protected, virtual]`

Send a SysEX message to the Midi Device.

Reimplemented in ALSAMidiDriver, CoreAudioMidiDriver, UnixSeqMidiDriver, and WindowsMidiDriver.

Definition at line 92 of file LowLevelMidiDriver.h.

Referenced by sendMT32SystemMessage(), and sequenceSendSysEx().

void LowLevelMidiDriver::sendComMessage ( ComMessage & message ) [private]

Definition at line 395 of file LowLevelMidiDriver.cpp.

References cond, lockComMessage(), messages, and unlockComMessage().

Referenced by destroySoftwareSynth(), destroyThreadedSynth(), finishSequence(), initThreadedSynth(), loadTimbreLibrary(), pauseSequence(), setGlobalVolume(), setSequenceSpeed(), setSequenceVolume(), startSequence(), and unpauseSequence().

void LowLevelMidiDriver::sendMT32SystemMessage	(	uint32	address_base,
		uint16	address_offset,
		uint32	len,
		const void *	data
	)			`[private]`

Definition at line 1405 of file LowLevelMidiDriver.cpp.

References ConvBaseToActual(), next_sysex, send_sysex(), and sysex_data_start.

Referenced by loadRhythmTemp(), setPatchBank(), threadMain(), and uploadTimbre().

void LowLevelMidiDriver::sequenceSendEvent	(	uint16	sequence_id,
		uint32	message
	)			`[private, virtual]`

An event sent from a sequence to play

Parameters:

	sequence_id	The id of the sequence that is attempting to send the event
	message	The Event being sent

Implements XMidiSequenceHandler.

Definition at line 870 of file LowLevelMidiDriver.cpp.

References chan_map, global_volume, loadRhythmTemp(), lockChannel(), mt32_bank_sel, mt32_patch_bank_sel, mt32_patch_banks, mt32_rhythm_bank, protectChannel(), send(), and setPatchBank().

void LowLevelMidiDriver::sequenceSendSysEx	(	uint16	sequence_id,
		uint8	status,
		const uint8 *	msg,
		uint16	length
	)			`[private, virtual]`

Send a SysEx event from a Sequence

Parameters:

	sequence_id	The id of the sequence that is attempting to send the event
	status	The Status Byte of the SysEx event
	msg	The SysEx data (including terminator byte)
	length	The number of bytes of SysEx data to send

Implements XMidiSequenceHandler.

Definition at line 929 of file LowLevelMidiDriver.cpp.

References ConvBaseToActual(), next_sysex, patch_base, patch_mem_offset(), patch_temp_base, patch_temp_offset(), rhythm_base, rhythm_mem_offset(), send_sysex(), timbre_base, timbre_mem_offset(), timbre_temp_base, timbre_unk_base, and uploading_timbres.

void LowLevelMidiDriver::setGlobalVolume ( int vol ) [virtual]

Set the global volume level

Parameters:

vol

The new global volume level (0-255)

Implements MidiDriver.

Definition at line 305 of file LowLevelMidiDriver.cpp.

References LowLevelMidiDriver::ComMessage::data, MidiDriver::initialized, sendComMessage(), LowLevelMidiDriver::ComMessage::sequence, and LowLevelMidiDriver::ComMessage::volume.

void LowLevelMidiDriver::setPatchBank	(	int	bank,
		int	patch
	)			`[private]`

Definition at line 1446 of file LowLevelMidiDriver.cpp.

References LowLevelMidiDriver::MT32Timbre::index, PentZip::int(), mt32_patch_bank_sel, mt32_patch_banks, mt32_patch_template, mt32_timbre_banks, patch_base, patch_mem_offset(), patch_mem_size, perr, pout, sendMT32SystemMessage(), LowLevelMidiDriver::MT32Patch::timbre_bank, LowLevelMidiDriver::MT32Patch::timbre_num, and uploadTimbre().

Referenced by playSequences(), and sequenceSendEvent().

void LowLevelMidiDriver::setSequenceSpeed	(	int	seq_num,
		int	speed
	)			`[virtual]`

Set the speed of a sequence

Parameters:

	seq_num	The Sequence number to change it's speed
	speed	The new speed for the sequence (percentage)

Implements MidiDriver.

Definition at line 317 of file LowLevelMidiDriver.cpp.

References LowLevelMidiDriver::ComMessage::data, MidiDriver::initialized, sendComMessage(), LowLevelMidiDriver::ComMessage::sequence, LowLevelMidiDriver::ComMessage::speed, and uploading_timbres.

void LowLevelMidiDriver::setSequenceVolume	(	int	seq_num,
		int	vol
	)			`[virtual]`

Set the volume of a sequence

Parameters:

	seq_num	The Sequence number to set the volume for
	vol	The new volume level for the sequence (0-255)

Implements MidiDriver.

Definition at line 291 of file LowLevelMidiDriver.cpp.

References LowLevelMidiDriver::ComMessage::data, MidiDriver::initialized, sendComMessage(), LowLevelMidiDriver::ComMessage::sequence, uploading_timbres, and LowLevelMidiDriver::ComMessage::volume.

void LowLevelMidiDriver::startSequence	(	int	seq_num,
		XMidiEventList *	list,
		bool	repeat,
		int	vol,
		int	branch = `-1`
	)			`[virtual]`

Start playing a sequence

Parameters:

	seq_num	The Sequence number to use.
	list	The XMidiEventList to play
	repeat	If true, endlessly repeat the track
	activate	If true, set the sequence as active
	vol	The volume level to start playing the sequence at (0-255)

Implements MidiDriver.

Definition at line 245 of file LowLevelMidiDriver.cpp.

References LowLevelMidiDriver::ComMessage::data, XMidiEventList::incerementCounter(), MidiDriver::initialized, lockComMessage(), LowLevelMidiDriver::ComMessage::play, playing, sendComMessage(), LowLevelMidiDriver::ComMessage::sequence, unlockComMessage(), uploading_timbres, waitTillNoComMessages(), and yield().

int LowLevelMidiDriver::threadMain ( ) [private]

Definition at line 495 of file LowLevelMidiDriver.cpp.

References all_dev_reset_base, close(), cond, LowLevelMidiDriver::ComMessage::data, display_base, display_mem_size, increaseThreadPriority(), LowLevelMidiDriver::ComMessage::init_failed, MidiDriver::initialized, lockComMessage(), messages, mutex, open(), playSequences(), sendMT32SystemMessage(), sequences, unlockComMessage(), xmidi_clock, and yield().

Referenced by threadMain_Static().

int LowLevelMidiDriver::threadMain_Static ( void * data ) [static, private]

Definition at line 487 of file LowLevelMidiDriver.cpp.

References threadMain().

Referenced by initThreadedSynth().

int LowLevelMidiDriver::unlockAndUnprotectChannel ( uint16 sequence_id ) [private]

Definition at line 1144 of file LowLevelMidiDriver.cpp.

References chan_map, lockChannel(), and protectChannel().

Referenced by playSequences().

void LowLevelMidiDriver::unlockComMessage ( ) [private]

Definition at line 413 of file LowLevelMidiDriver.cpp.

References mutex.

void LowLevelMidiDriver::unpauseSequence ( int seq_num ) [virtual]

Unpause the playback of a sequence

Parameters:

seq_num

The Sequence number to unpause

Implements MidiDriver.

Definition at line 358 of file LowLevelMidiDriver.cpp.

References LowLevelMidiDriver::ComMessage::data, MidiDriver::initialized, LowLevelMidiDriver::ComMessage::pause, sendComMessage(), LowLevelMidiDriver::ComMessage::sequence, and uploading_timbres.

void LowLevelMidiDriver::uploadTimbre	(	int	bank,
		int	timbre
	)			`[private]`

Definition at line 1551 of file LowLevelMidiDriver.cpp.

References LowLevelMidiDriver::MT32Timbre::index, mt32_patch_bank_sel, mt32_timbre_banks, mt32_timbre_used, perr, pout, LowLevelMidiDriver::MT32Timbre::protect, sendMT32SystemMessage(), timbre_base, timbre_mem_offset(), timbre_mem_size, LowLevelMidiDriver::MT32Timbre::time_uploaded, and xmidi_clock.

Referenced by loadRhythmTemp(), playSequences(), and setPatchBank().

void LowLevelMidiDriver::waitTillNoComMessages ( ) [private]

Definition at line 403 of file LowLevelMidiDriver.cpp.

References peekComMessageType(), and yield().

Referenced by destroyMidiDriver(), destroySoftwareSynth(), isSequencePlaying(), loadTimbreLibrary(), and startSequence().

virtual void LowLevelMidiDriver::yield ( ) [inline, protected, virtual]

Yield execution of the current thread.

Reimplemented in CoreAudioMidiDriver, and WindowsMidiDriver.

Definition at line 101 of file LowLevelMidiDriver.h.

Referenced by destroyThreadedSynth(), initThreadedSynth(), loadTimbreLibrary(), startSequence(), threadMain(), and waitTillNoComMessages().

Member Data Documentation

sint32 LowLevelMidiDriver::callback_data[LLMD_NUM_SEQ] [private]

Definition at line 169 of file LowLevelMidiDriver.h.

Referenced by getSequenceCallbackData(), handleCallbackTrigger(), initMidiDriver(), and playSequences().

SDL_mutex* LowLevelMidiDriver::cbmutex [private]

Definition at line 159 of file LowLevelMidiDriver.h.

Referenced by destroyMidiDriver(), getSequenceCallbackData(), handleCallbackTrigger(), and initMidiDriver().

int LowLevelMidiDriver::chan_locks[16] [private]

Definition at line 174 of file LowLevelMidiDriver.h.

Referenced by initMidiDriver(), lockChannel(), and protectChannel().

int LowLevelMidiDriver::chan_map[LLMD_NUM_SEQ][16] [private]

Definition at line 175 of file LowLevelMidiDriver.h.

Referenced by initMidiDriver(), lockChannel(), protectChannel(), sequenceSendEvent(), and unlockAndUnprotectChannel().

SDL_cond* LowLevelMidiDriver::cond [private]

Definition at line 160 of file LowLevelMidiDriver.h.

Referenced by destroyMidiDriver(), initMidiDriver(), sendComMessage(), and threadMain().

int LowLevelMidiDriver::global_volume [private]

Definition at line 172 of file LowLevelMidiDriver.h.

Referenced by playSequences(), and sequenceSendEvent().

std::queue<ComMessage> LowLevelMidiDriver::messages [private]

Definition at line 157 of file LowLevelMidiDriver.h.

Referenced by destroyThreadedSynth(), initThreadedSynth(), peekComMessageType(), playSequences(), produceSamples(), sendComMessage(), and threadMain().

int LowLevelMidiDriver::mt32_bank_sel[LLMD_NUM_SEQ][16] [private]

Definition at line 217 of file LowLevelMidiDriver.h.

Referenced by initMidiDriver(), loadTimbreLibrary(), and sequenceSendEvent().

int LowLevelMidiDriver::mt32_patch_bank_sel[128] [private]

Definition at line 218 of file LowLevelMidiDriver.h.

Referenced by extractTimbreLibrary(), initMidiDriver(), loadTimbreLibrary(), sequenceSendEvent(), setPatchBank(), and uploadTimbre().

MT32Patch** LowLevelMidiDriver::mt32_patch_banks[128] [private]

Definition at line 213 of file LowLevelMidiDriver.h.

Referenced by extractTimbreLibrary(), initMidiDriver(), loadTimbreLibrary(), loadXMidiTimbreLibrary(), playSequences(), sequenceSendEvent(), and setPatchBank().

const LowLevelMidiDriver::MT32Patch LowLevelMidiDriver::mt32_patch_template [static, private]

Initial value:

Definition at line 204 of file LowLevelMidiDriver.h.

Referenced by loadTimbreLibrary(), loadXMidiTimbreLibrary(), and setPatchBank().

MT32Rhythm* LowLevelMidiDriver::mt32_rhythm_bank[128] [private]

Definition at line 215 of file LowLevelMidiDriver.h.

Referenced by extractTimbreLibrary(), initMidiDriver(), loadRhythmTemp(), loadTimbreLibrary(), and sequenceSendEvent().
